Build Information Files

The following chapter explains the output files generated by the csolution tool. Depending on options, the files *.cbuild-pack.yml and *.cbuild-set.yml are also used as input files. The build information files are used for:

generate CMake input files via the cbuild2cmake tool.
provide details for the graphical user interface in VS Code extension Arm CMSIS Solution.
obtain a list of licenses used in a project.

File	Description
`*.cbuild-idx.yml`	Index file of all `*.cbuild.yml` build descriptions; contains also overall information for the application.
`*.cbuild.yml`	Build description of a single `*.cproject.yml` input file; contains all information for the build step for a specific context including references to the content used from software packs.
`*.cbuild-pack.yml`	Software packs recorded for all input files (`*.csolution.yml`, `cproject.yml`, and `.clayer.yml`); used as input file to ensure reproducible builds that use the same software packs and pack versions.
`*.cbuild-set.yml`	Context selection for the build process, enabled with option --context-set:.
`*.cbuild-run.yml`	Contains the information required to download and debug a csolution project to a target.

Directory Structure

The csolution based projects are portable across different host computers and use, therefore relative file references.

All file references use relative paths to the base directory of the related *.yml file. Files that are within the file structure of the csolution base directory are also referenced using relative paths, i.e. ../layers/layer1/source-file1.c.
Files that are located in the CMSIS-Pack root directory are prefixed with ${CMSIS_PACK_ROOT}.

Note

All file references to user source code should be relative paths. The prefixes ${CMSIS_PACK_ROOT} and ${CMSIS_COMPILER_ROOT} are used to refer to base directories of files that relate to software packs and compiler-specific files. These base directories can also be on different filesystem drives.

Files outside of the directory structure of a csolution based application use absolute paths. If absolute paths are used, a warning is issued in the *.cbuild-idx.yml file.

A typical directory structure of a csolution based application that uses common layers source files are shown below.

📦 # csolution base directory
 ┣ myapp.csolution.yml
 ┣ myapp.cbuild-idx.yml
 ┣ myapp.cbuild-pack.yml
 ┣ myapp.cbuild-set.yml
 ┣ 📂 project1
 ┃  ┣  mypro1.cproject.yml
 ┃  ┣  mypro1.cbuild.Debug+Target.yml     # file references are relative to directory project1
 ┣ 📂 project2
 ┃  ┣  mypro2.cproject.yml
 ┃  ┣  mypro2.cbuild.Debug+Target.yml     # file references are relative to directory project2
 ┣ 📂 layer
 ┃  ┣  mylayer.clayer.yml

Lock Pack Versions

A csolution project refers to packs in different files (*.csolution.yml, *.cproject.yml or *.clayer.yml). To ensure consistent pack usage during application development (for example when new target-types or build-types are introduced), the *.cbuild-pack.yml file records the exact pack versions.

The required packs can be specified in csolution project files in the following ways:

exactly, e.g. ARM::CMSIS@5.9.0
with range, e.g. ARM::CMSIS@>=5.8.0
without version, e.g. ARM::CMSIS
with wildcards on the pack name, e.g. ARM::CMSI*
without pack name, e.g. ARM

The required packs are resolved to an exact pack version that is recorded in the *.cbuild-pack.yml file as shown below:

cbuild-pack:
  resolved-packs:
    - resolved-pack: ARM::CMSIS@5.9.0
      selected-by-pack:
        - ARM
        - ARM::CMSI*
        - ARM::CMSIS
        - ARM::CMSIS@>=5.8.0
        - ARM::CMSIS@5.9.0

If csolution project files are modified, the selected-by-pack information ensures that consistent pack versions are used. If a required pack is no longer used in present in the csolution project, the relevant entry resolved-pack: in the *.cbuild-pack.yml file is removed.

The *.cbuild-pack.yml file is located in the same directory as the *.csolution.yml file and is used by the csolution for every command that uses a *.csolution.yml file. Examples are:

csolution convert - uses and updates the *.cbuild-pack.yml file.
csolution list ... - uses the *.cbuild-pack.yml file
csolution run - uses the *.cbuild-pack.yml file.
csolution update-rte - uses and updates the *.cbuild-pack.yml file.

The operation of the csolution command is as follows:

Load the csolution project files (*.csolution.yml, *.cproject.yml or *.clayer.yml).
Initially there is no *.cbuild-pack.yml file. If it exists, the *.cbuild-pack.yml file is loaded. The packs are aligned with the resolved-pack: information of the *.cbuild-pack.yml file in these steps:
- PopulateContexts: Add resolved-pack: information to the solution data model.
- AddPackRequirements: Pack version ranges and pack wildcards are matched to fully qualified versions of the solution data model. Pack wildcards are expanded to fully qualified packs using cbuild-pack.yml. Pack wildcards are kept for further expansion in the solution data model.
Execute the csolution command, for example convert, list, run, or update-rte.
Update the *.cbuild-pack.yml file (only if the content changes):
- GenerateCbuildPack: Generate the resolved-pack: list of packs required by all contexts. The original pack: specification is stored under selected-by-pack:.

With the subsequent csolution command, the information of the *.cbuild-pack.yml file is used to load the appropriate fully qualified pack versions, matching previously used packs.

File Format

The following sections describe the format of the build information files. Many nodes are identical with the CSolution Project Format, but optional information is fully expanded. The nodes that are different are explained below under:

Nodes for Project Management
Nodes for File Management
Nodes for License Information

`*.cbuild-idx.yml`

The <solution-name>.cbuild-idx.yml file is generated for the csolution project and refers all contexts that are generated. It is structured as outlined below.

`build-idx:`	Content
`generated-by:`	Reference to csolution tool along with version information used to generate this application.
`description:`	Brief description text copied from the `*.csolution.yml` input file used to generate this application.
`cdefault:`	Relative path and name of the `*.cdefault.yml` input file used to generate this application.
`csolution:`	Relative path and name of the `*.csolution.yml` input file used to generate this application.
`configurations:`	For reference applications with undefined layers: list of potential project configurations for a reference application with undefined layers
`cprojects:`	List of `.cproject.yml` and `.clayer.yml` input files used to generate this application.
`cbuilds:`	List of `*.cbuild.yml` output files that are generated for this application.
`select-compiler:`	For projects with unspecified compiler: list of available compilers for selection

Example:

build-idx:
  generated-by: csolution version 2.3.0
  description: USB application examples sharing board layers.
  cdefault: cdefault.yml
  csolution: USB.csolution.yml
  configurations:
    - target-type: B-U585I-IOT02A
      target-configurations:
        - configuration:
            - variables:
                - Board-Layer: /Users/.../Arm/Packs/Keil/B-U585I-IOT02A_BSP/2.0.0-dev0/Layers/IoT/Board.clayer.yml
  cprojects:
    - cproject: Device/HID/HID.cproject.yml
      clayers:
        - clayer: $Board-Layer$
    - cproject: Device/MassStorage/MassStorage.cproject.yml
      clayers:
        - clayer: $Board-Layer$
  cbuilds:
    - cbuild: Device/HID/HID.Debug+B-U585I-IOT02A.cbuild.yml
      project: HID
      configuration: .Debug+B-U585I-IOT02A
    - cbuild: Device/MassStorage/MassStorage.Release+B-U585I-IOT02A.cbuild.yml
      project: MassStorage
      configuration: .Release+B-U585I-IOT02A
  errors: true                  # indicates error
  packs-missing:                # lists missing packs
    - pack: ARM::CMSIS-RTX      # with unspecified version
    - pack: ARM::CMSIS@6.0.0    # with specified version

`*.cbuild.yml`

The <project-name>.<build-type>+<target-type>.cbuild.yml file contains all information for one context. It is structured as outlined below.

`build:`	Content
`generated-by:`	Reference to csolution tool along with version information used to generate this application.
`context:`	Project context of this build description.
`compiler:`	Compiler toolchain used for code generation.
`board:`	Board name used for this context.
`board-pack:`	BSP that is defining the Board name used for this context.
`board-books:`	List board documentation as defined in the PDSC element `<board>`.
`device:`	Device name with processor core selection used in this project context.
`device-pack:`	DFP that is defining the Device name with processor core selection used in this project context.
`device-books:`	List device documentation as defined in the PDSC element `<device>`.
`processor:`	List of processor attributes used in this project context.
`packs:`	List of software packs along with path information used to generate this project context.
`optimize:`	Generic optimize level for code generation.
`debug:`	Global control the generation of debug information.
`warnings:`	Global control warning level for compiler diagnostics.
`misc:`	Global control of miscellaneous literal tool-specific controls.
`define:`	List of global define symbol settings.
`add-path:`	List of global include path settings.
`output-type:`	Select the output type (exe or lib) for this project context.
`output-dirs:`	Specifies the directories used to generate the output files.
`linker:`	Specifies the linker script processing used to generate the output files.
`components:`	List of software components used.
`apis:`	List of API interfaces used.
`groups:`	List of source file groups along with source files.
`constructed-files:`	List of files that are generated by RTE management of the `csolution` tool.
`licenses:`	List of licenses used by the various software components of this project context.

Example:

build:
  context: HelloWorld_cm0plus.Debug+FRDM-K32L3A6
  compiler: AC6
  device: K32L3A60VPJ1A:cm0plus
  processor:
    fpu: off
    endian: little
    trustzone: non-secure
  packs:
    - pack: ARM::CMSIS@5.9.0
      path: ${CMSIS_PACK_ROOT}/ARM/CMSIS/5.9.0
    - pack: NXP::K32L3A60_DFP@15.0.0
      path: ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0
  optimize: none
  debug: on
  misc:
    C:
      - -std=c99
      - -fno-builtin
    CPP:
      - -fno-builtin
    Link:
      - --diag_suppress 6314
      - --entry=Reset_Handler
  define:
    - CPU_K32L3A60VPJ1A_cm0plus
    - MCMGR_HANDLE_EXCEPTIONS=1
           :
    - _RTE_
  add-path:
    - ../middleware/multicore/mcmgr/src
    - RTE/Board_Support/K32L3A60VPJ1A_cm0plus
    - RTE/_HelloWorld_cm0plus.Debug_FRDM-K32L3A6
    - ${CMSIS_PACK_ROOT}/ARM/CMSIS/5.9.0/CMSIS/Core/Include
    - ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0
            :
  output-type: exe
  output-dirs:
    gendir: generated
    intdir: ../tmp/HelloWorld_cm0plus/FRDM-K32L3A6/Debug
    outdir: ../out/HelloWorld_cm0plus/FRDM-K32L3A6/Debug
    rtedir: RTE
  components:
    - component: ARM::CMSIS:CORE@5.6.0
      condition: ARMv6_7_8-M Device
      from-pack: ARM::CMSIS@5.9.0
      selected-by: ARM::CMSIS:CORE
    - component: NXP::Device:CMSIS:K32L3A60_system@1.0.0
      condition: device.K32L3A60_AND_device.K32L3A60_CMSIS
      from-pack: NXP::K32L3A60_DFP@15.0.0
      selected-by: NXP::Device:CMSIS:K32L3A60_system
      files:
        - file: ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0/system_K32L3A60_cm0plus.c
          category: sourceC
    - component: NXP::Device:SDK Drivers:clock@2.2.1
      condition: device.K32L3A60_AND_driver.common
      from-pack: NXP::K32L3A60_DFP@15.0.0
      selected-by: NXP::Device:SDK Drivers:clock
      files:
        - file: ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0/drivers/fsl_clock.c
          category: sourceC
    - component: NXP::Device:SDK Drivers:common@2.3.2
      condition: device.K32L3A60_AND_device.K32L3A60_CMSIS_AND_driver.clock
      from-pack: NXP::K32L3A60_DFP@15.0.0
      selected-by: NXP::Device:SDK Drivers:common
      files:
        - file: ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0/drivers/fsl_common.c
          category: sourceC
        - file: ${CMSIS_PACK_ROOT}/NXP/K32L3A60_DFP/15.0.0/drivers/fsl_common_arm.c
          category: sourceC
            :
  groups:
    - group: Application
      files:
        - file: ./hello_world_core1.c
          category: sourceC
        - file: ./RTE/Device/K32L3A60VPJ1A_cm0plus/K32L3A60xxx_cm0plus_flash.scf
          category: linkerScript
    - group: Middleware
      files:
        - file: ../middleware/multicore/mcmgr/src/mcmgr.c
          category: sourceC
            :
  constructed-files:
    - file: RTE/_HelloWorld_cm0plus.Debug_FRDM-K32L3A6/RTE_Components.h
      category: header

`*.cbuild-pack.yml`

The <solution-name>.cbuild-pack.yml file contains the pack information for the csolution project. It is structured as outlined below.

`cbuild-pack:`	Content
`resolved-packs:`	List of packs used to create the project contexts.

`resolved-packs:`	Content
`- resolved-pack:`	pack name used.
`selected-by-pack:`	List of components included from the pack.

Example:

cbuild-pack:
  resolved-packs:
    - resolved-pack: ARM::CMSIS@5.9.0
      selected-by:
        - ARM::CMSIS
    - resolved-pack: ARM::V2M_MPS3_SSE_300_BSP@1.2.0
      selected-by:
        - ARM::V2M_MPS3_SSE_300_BSP@1.2.0
    - resolved-pack: Keil::ARM_Compiler@1.7.2
      selected-by:
        - Keil::ARM_Compiler

`*.cbuild-set.yml`

The <solution-name>.cbuild-set.yml file selects the context set for the csolution project. The structure is outlined below.

`cbuild-set:`	Content
`generated-by:`	Reference to tool along with version information that generated this file.
`contexts:`	List of context names for the context-set: option.

Example:

cbuild-set:
  generated-by: csolution version 2.2.0
  contexts:
    - context: CM33_s.Release+AVH
    - context: CM33_ns.Debug+AVH

Nodes for Project Management

`configurations:`

The configurations: node lists possible configurations for reference applications that have undefined variable settings.

`configurations:`	Content
`- target-type:`	Name of target-type for which configurations are listed.
`target-configurations:`	List of possible configurations for the target-type.
- `configuration:`	Possible configuration for the reference application.
`- variables:`	List of variable names with configuration information.
`<layer-name>:`	Layer name with a value that is the path to the `clayer.yml` file.
`description:`	Brief description text taken from `*.clayer.yml`.
`settings:`	Usage instructions for this layer.
`- set:`	Value of `set` and `info` taken from `connect:` in `*.clayer.yml`.
`path:`	Path to the directory that contains the layer (from *.PDSC file).
`file:`	Name of the .clayer.yml file (optional with a relative path to the directory specified with path) (from `.PDSC` file).
`copy-to:`	Proposed directory for the layer in the csolution project (from *.PDSC file).

Example:

  configurations:
    - target-type: B-U585I-IOT02A
      target-configurations:
        - configuration:
            - variables:
              - Board-Layer: /Users/.../Arm/Packs/Keil/B-U585I-IOT02A_BSP/2.0.0-dev0/Layers/IoT/Board.clayer.yml
                description: "Configuration including FXLS8962 sensor"

    - target-type: MyBoard
        - configuration:
            - variables:
              - Board-Layer: ./layer/board/frdmk22f/frdmk22f.clayer.yml
                description: "Configuration: Ethernet, UART, and WiFi"
                settings:
                - set: set1.select1 (connect A - set 1 select 1)
                path: ./layer/board/frdmk22f
                file: frdmk22f.clayer.yml
                copy-to: board/frdmk22f
              - Shield-Layer: ./layer/shield/agmp03/agmp03.clayer.yml
                description: "Shield with FXLS8962 and FXAS21002"
                settings:
                - set: Bus.SPI (FXLS8962 SPI Bus - Jumper configuration: I2C/SPI=SPI)
                - set: Bus.SPI (FXAS21002 SPI Bus - Jumper configuration: I2C/SPI=SPI)
                path: ./layer/board/frdmk22f
                file: frdmk22f.clayer.yml
                copy-to: board/frdmk22f

`cprojects:`

The cprojects: node lists all *.cproject.yml input files along with *.clayer.yml files that are used to compose the application.

`cprojects:`	Content
`- cproject:`	Relative path and name of a `*.cproject.yml` input file.
`clayers:`	List of `.clayer.yml` input files used by this `.cproject.yml` file.

Example:

  cprojects:
    - cproject: AWS_MQTT_MutualAuth_SW_Framework/Demo.cproject.yml
      clayers:
        - clayer: AWS_MQTT_MutualAuth_SW_Framework/Socket/FreeRTOS+TCP/Socket.clayer.yml
        - clayer: AWS_MQTT_MutualAuth_SW_Framework/Socket/WiFi/Socket.clayer.yml
        - clayer: AWS_MQTT_MutualAuth_SW_Framework/Socket/VSocket/Socket.clayer.yml
             :

`cbuilds:`

The cbuilds: node lists all project context configurations that are generated with this build.

`cbuilds:`	Content
`- cbuild:`	Build description file of a single context for a *.cproject.yml input file;
`project:`	Project name
`configuration:`	Context configuration for this build description file
`errors:`	Error indication
`packs-missing:`	List of missing packs
`packs-unused:`	List of unused packs
`messages:`	List of `errors:`, `warnings:`, or `info:` messages

Example:

  cbuilds:
    - cproject: AWS_MQTT_MutualAuth_SW_Framework/Demo.cproject.yml
      project: Demo
      configuration: .Debug+AVH
      errors: true
      messages:
        errors:
          - no compatible software layer found. Review the required connections of the project
        info:
          - test.cbuild-set.yml - file is already up-to-date

`select-compiler:`

If no compiler is specified in the csolution project, the cbuild setup command lists the available compilers based on the compiler registration and select-compiler: node in the file *.csolution.yml or cdefault.yml.

`select-compiler:`	Content
`- compiler:`	Name (optionally with version) of the compiler toolchain; copied from the `select-compiler:` node in the csolution project.

`packs:`

The packs: node is the start of a pack list that is used for the project context.

`packs:`	Content
`- pack:`	Explicit pack specification with exact version information used.
`path:`	Path name that stores the software pack (see note).

Note

Packs that are located in the CMSIS-Pack root directory are prefixed with %CMSIS_PACK_ROOT%.

Example:

  packs:
    - pack: ARM::CMSIS-FreeRTOS@10.4.6
      path: ${CMSIS_PACK_ROOT}/ARM/CMSIS-FreeRTOS/10.4.6
    - pack: ARM::CMSIS@5.9.0
      path: ${CMSIS_PACK_ROOT}/ARM/CMSIS/5.9.0
       :
    - pack: MDK-Packs::IoT_Socket@1.3.1
      path: ../IoT_Socket

`generators:`

The generators: node contains information for calling a generator.

`generators:`	Content
`- generator:`	Section for a specific generator.
`path:`	Path name for storing the files generated.
`gdpsc:`	File name of the *.GDPSC file that stores the information in `path:`.
`command:`	Section for invoking the generator on different Host operating systems.

Example:

  generators:
    - generator: STM32CubeMX
      path: RTE/Device
      gpdsc: RTE/Device/STM32L475VGTx/FrameworkCubeMX.gpdsc
      command:
        win:
          file: ${CMSIS_PACK_ROOT}/Keil/STM32L4xx_DFP/2.6.1/MDK/CubeMX/STM32CubeMxLauncher.exe
          arguments:
            - STM32L475VGTx
            - ../../Release+STM32L4.cprj
            - ${CMSIS_PACK_ROOT}/Keil/STM32L4xx_DFP/2.6.1

`generator:`

`generator:`	Content
`- id:`	Generator identifier used for this component
`path:`	File name and path to the *.cgen.yml file that is generated.

Nodes for File Management

Keyword	Description
`groups:`	Start of a list that adds source groups and files.
`components:`	Start of a list that adds software components.

`linker:`

`linker:`	Content
`- regions:`	Path and file name of `regions_<device_or_board>.h`, used to generate a Linker Script via pre-processor.
`- script:`	Path and file name of the pre-processed Linker Script template.
`- define:`	Define symbol settings for the linker script file preprocessor.

`groups:`

`groups:`	Content
`- group:`	Name of the group.
`optimize:`	Optimize level for code generation.
`debug:`	Generation of debug information.
`warnings:`	Control generation of compiler diagnostics.
`define:`	Define symbol settings for code generation.
`add-path:`	Additional include file paths.
`misc:`	Literal tool-specific controls.
`groups:`	Start a nested list of groups.
`files:`	List of files that belong to a group

`files:` of a group

`files:`	Content
`- file:`	Name of the file.
`category:`	File category according Open-CMSIS-Pack specification
`optimize:`	Optimize level for code generation.
`debug:`	Generation of debug information.
`warnings:`	Control generation of compiler diagnostics.
`define:`	Define symbol settings for code generation.
`add-path:`	Additional include file paths.
`misc:`	Literal tool-specific controls.

`apis:`

`apis:`	Content
`- api:`	Name of the API.
`condition:`	Reference to the condition ID of the software pack that triggered the inclusion of this API.
`from-pack:`	Pack that defines this API.
`implemented-by:`	Refers to the software componeent that implements the API.
`files:`	List of files that belong to this API.

`components:`

`components:`	Content
`- component:`	Name of the software component.
`condition:`	Reference to the condition ID of the software pack that triggered the inclusion of this component.
`from-pack:`	Pack that defines this component.
`selected-by:`	The original component name used in `cproject/clayer.YML`.
`optimize:`	Optimize level for code generation.
`debug:`	Generation of debug information.
`warnings:`	Control generation of compiler diagnostics.
`define:`	Define symbol settings for code generation.
`add-path:`	Additional include file paths.
`misc:`	Literal tool-specific controls.
`instances:`	Number of component instances configured.
`generator:`	Generator information for components that are configurable via a generator.
`implements:`	Refers to the API that the component is based on.
`files:`	List of files that belong to this component.

`files:` of a component

`files:`	Content
`- file:`	Name and path to the file.
`category:`	File category according to Open-CMSIS-Pack specification
`attr:`	File category according to Open-CMSIS-Pack specification; `api` refers to header files that define the api of a component.
`condition:`	Reference to the condition ID of the software pack that triggered the inclusion of this file.
`select:`	Selection text for user code template files and api header files.
`version:`	For files that belong to components the version specified in the PDSC file.
`base:`	Unmodified configuration file (base file from the software pack) that is currently in use.
`update:`	New configuration file from an updated software pack.
`status:`	Action for configuration file update: suggested, recommended, required.

`constructed-files:`

A list of files that are generated by the RTE management of the csolution tool.

`constructed-files:`	Content
`- file:`	Name and path to the file.
`category:`	File category according Open-CMSIS-Pack specification

Nodes for License Information

The *.cbuild.<build-type>+<target-type>.yml files contain license information about each software component that is included in software packs.

`licenses:`

Each different license that is used in a project context has a separate section.

`licenses:`	Content
`- license:`	License identifier or short description.
`lisense-agreement:`	File category according Open-CMSIS-Pack specification
`packs:`	List of software packs used to generate this project context.
`components:`	List of software components used to generate this project context.

Example:

  licenses:
    - license: <proprietary> END USER LICENSE AGREEMENT FOR ARM SOFTWARE DEVELOPMENT TOOLS
      license-agreement: ${CMSIS_PACK_ROOT}/Keil/MDK-Middleware/8.0.0/license_terms/license_agreement.txt
      packs:
        - pack: Keil::MDK-Middleware@8.0.0
      components:
        - component: Keil::USB&MDK:CORE@8.0.0
        - component: Keil::USB&MDK:Device:HID@8.0.0
        - component: Keil::USB&MDK:Device@8.0.0
    - license: Apache-2.0
      packs:
        - pack: ARM::CMSIS-Compiler@2.1.0
        - pack: ARM::CMSIS-Driver_STM32@1.0.0
        - pack: ARM::CMSIS-RTX@5.9.0
        :
      components:
        - component: CMSIS Driver:GPIO(API)
        - component: CMSIS Driver:I2C(API)
        - component: CMSIS Driver:SPI(API)
        :
        - component: ARM::CMSIS-Compiler:CORE@1.1.0
        - component: ARM::CMSIS-Compiler:STDERR:Custom@1.1.0
        - component: ARM::CMSIS-Compiler:STDIN:Custom@1.1.0
        :

Generator Information Files

The csolution run command generates the following build information files in the intdir: of the related context. These files are the input to a generator and provide information about the csolution project to the generator. The files are generated in the tmp directory of the project and contain absolute paths.

File	Description
`*.cbuild-gen-idx.yml`	Index file of all `*.cbuild-gen.yml` build descriptions; contains also overall information for the application.
`*.cbuild-gen.yml`	Build description of a single `.cproject.yml` input file. The format is identical with the `.cbuild.yml` file.

File Structure of `*.cbuild-gen-idx.yml`

`build-gen-idx:`	Content
`generated-by:`	Reference to csolution tool along with version information used to generate this application.
`generators:`	List of generators that are called with the `run` command

`generators:`	Content
`- id:`	`generator identifier` specified with the option `--generator` in the `csolution run` command.
`output:`	Specifies the directory for generated files
`board:`	Board name used for the generator
`device:`	Device name used for the generator
`project-type:`	Describes the project type "single-core", "multi-core", "trustzone"
`cbuild-gens:`	List of `*.cbuild-gen.yml` files with options that are generated for the generator run

`cbuild-gens:`	Content
`- cbuild-gen:`	Build information file with name `<context>.cbuild-gen.yml`; structure identical with *.cbuild.yml.
`project:`	Project name (used as a name for `*.cgen.yml` when `name:` is not specified)
`configuration:`	Specifies `.build-type+target-type` of this context.
`name:`	Explicit name for the `*.cgen.yml` generator import file specified by `generator options`.
`map:`	Mapping to a generator-specific run-time context name specified by `generator options`.

Example:

build-gen-idx:
  generated-by: csolution version 2.3.0
  generators:
    - id: CubeMX
      output: C:/w/csolution-examples/CubeMX/STM32CubeMX/MyBoard  # output directory
      device: STM32U585AIIx
      board: B-U585I-IOT02A
      project-type: single-core
      cbuild-gens:
        - cbuild-gen: C:/w/csolution-examples/CubeMX/tmp/CubeMX/MyBoard/Debug/CubeMX.Debug+MyBoard.cbuild-gen.yml
          project: CubeMX     # user selected name of the project
          configuration: .Debug+MyBoard
          name: BoardLayer    # create BoardLayer.cgen.yml in output directory (new in CMSIS-Toolbox 2.4.0)
          map: Boot           # map to STM32CubeMX run-time context (new in CMSIS-Toolbox 2.4.0)

Generator Import File

The *.cgen.yml file lists the generated csolution project part and starts with the node generator-import:. It is defined similarly to a Software Layer additional parameters, files, and components that are included in the project.

File Structure of `*.cgen.yml`

`generator-import:`	Content
`generated-by:`	Tool name that generated this file
`for-device:`	Device information, used for consistency check (device selection is in `*.csolution.yml`).
`for-board:`	Board information, used for consistency check (board selection is in `*.csolution.yml`).
`packs:`	Defines packs that are required for this layer.
`define:`	Define symbol settings for code generation.
`undefine:`	Remove define symbol settings for code generation.
`add-path:`	Additional include file paths.
`del-path:`	Remove specific include file paths.
`groups:`	List of source file groups along with source files.
`components:`	List of software components used.

Run and Debug Management

Note

The features described below are under active development and will implemented in CMSIS-Toolbox Version 2.9

The CMSIS-Toolbox build system manages software packs that contain information about device, board, and software components. It controls the build output (typically ELF/DWARF files), and has provisions for HEX, BIN and post-processing. Using the context set it manages the application images for different target-types.

The software packs contain information that is the basis for debug and run settings:

Flash algorithms of device memory (in DFP) and board memory (in BSP).
On-board debug adapter (a default programming/debug channel) including features.
Available memory of device and board.
Device parameters such as processor core(s) and clock speed.
Debug Access Sequences and System Description Files that support more complex Cortex-A/R/M configurations.
Debug Configuration files (*.dbgconf) that configure device properties such as trace pins.
CMSIS-SVD System View Description (SVD) files for viewing device peripherals.
CMSIS-View Software Component Viewer Description (SCVD) files for analysis of software components (RTOS, Middleware).

The user may add the following information in the *.csolution.yml file:

Additional memory with flash algorithms for external memory in custom hardware using the memory: node.
Additional images that should be programmed or loaded using the images: node.
Debugger configuration provided by packs can be adjusted using the debugger: node.

Note

The information may be defined at various places. The *.csolution.yml file overrules the information from the BSP. The BSP overrules the information from the DFP.

The file *.cbuild-run.yml contains for a single target-type of a csolution project the relevant information for run and debug. The information is collected by the CMSIS-Toolbox and the file name has the format <solution-name>+<target-type>.cbuild-run.yml file. It is used by programmers and debuggers in command line or IDE workflows. The information is portable, i.e. from a cloud-hosted CI system to a desktop test system.

Run and Debug Information Management

The <solution-name>+<target-type>.cbuild-run.yml file represents a single target-type of a csolution project.

Example:

cbuild-run:
  generated-by: csolution version 2.7.0
  solution: CubeMX.csolution.yml
  target-type: MyBoard_ROM
  compiler: AC6
  device: STMicroelectronics::STM32U585AIIx
  device-pack: Keil::STM32U5xx_DFP@3.0.0
  board: STMicroelectronics::B-U585I-IOT02A:Rev.C
  board-pack: Keil::B-U585I-IOT02A_BSP@2.0.0
  programming:
    - algorithm: ${CMSIS_PACK_ROOT}/Keil/STM32U5xx_DFP/3.0.0/CMSIS/Flash/STM32U5xx_2M_0800.FLM
      start: 0x08000000
      size: 0x00200000
      ram-start: 0x20000000
      ram-size: 0x00008000
    - algorithm: ${CMSIS_PACK_ROOT}/Keil/STM32U5xx_DFP/3.0.0/CMSIS/Flash/STM32U5xx_2M_0C00.FLM
      :
  system-descriptions:
    - file: ${CMSIS_PACK_ROOT}/Keil/STM32U5xx_DFP/3.0.0/CMSIS/SVD/STM32U585.svd
      type: svd
  output:
    - file: out/CubeMX/MyBoard_ROM/Debug/CubeMX.axf
      type: elf

  system-resources:
    memory:
      :

  debugger:
    - name: pyOCD: CMSIS-DAP
      :
    - name: JLink
      :

  debug-vars:
      :

  debug-sequences:
      :

  debug-topology:
      :

File Structure of `*.cbuild-run.yml`

The following describes the overall structure of the *.cbuild-run.yml file. While the content of this file is generated using the cbuild command, it is also posssible to manually generate this file or modify content.

`cbuild-run:`		Content
`generated-by:`	Optional	Tool name that generated this file.
`solution:`	Optional	Name of the `*.csolution.yml` file.
`target-type:`	Optional	Name of the target-type that was selected.
`target-set:`	Optional	Name of the target-set that was selected (format [@])
`compiler:`	Optional	Compiler toolchain used for code generation.
`board:`	Optional	Board name used for this target.
`board-pack:`	Optional	BSP that is defining the Board name used for this target.
`device:`	Optional	Device name used in this target.
`device-pack:`	Optional	DFP that is defining the Device used in this target.
`output:`	Required	List of the image (ELF, HEX, BIN) files generated.
`system-resources:`	Optional	List of the system resources available in target.
`system-descriptions:`	Optional	List of description files for peripherals and software components.
`debugger:`	Required	Configuration information for the debug connection.
`debug-sequences:`	Optional	Tool actions for debugging, tracing, or programming.
`programming:`	Optional	Algorithms for flash download.
`debug-topology:`	Optional	Properties of the system hardware for debug functionality.

`output:`

This node contains information about the images that should be loaded. The images that are generated by the csolution project are typically configured using a context set. Use the images: node in the *.csolution.yml file to add other output files.

`output:`		Content
`- file:`	Required	Specifies the file name.
`type:`	Required	Specifies the file type.
`info:`	Optional	Brief description of the file.
`load:`	Required	Load mode of the image file for programmers and debug tools.
`load-offset:`	Optional	Offset applied in `*.csolution.yml` when loading the image file.
`pname:`	Optional	Image belongs to processor in a multi-core system.

load: mode

For image: files that are added using the images: node of the *.csolution.yml file but have no load: mode specified, the CMSIS-Toolbox adds an load: mode depending on the file type.

Files with type: elf get load: image+symbols.
Files with type: lib get load: none.
All other file types get load: image.

For files that are the output of a cproject.yml project, the output: node lists all files that are generated. The CMSIS-Toolbox adds an load: mode depending on the compiler used and the file types that are generated to indicate how these files should be used by programmers and debug tools.

For compiler: AC6:

When only a file with type: elf is generated, the file gets load: image+symbols.
When a file with type: elf and a file with type: hex is generated, the type: elf file gets load: symbols and the type: hex file gets load: image. This allows to bypass GNU loader issues with Arm Compiler 6.
All other file types get load: none.

For any other compiler:

Files with type: elf get load: image+symbols.
All other file types get load: none.

Note

info: generate by <context> indicates that an image is generated by a context of the csolution project.

`system-resources:`

The system-resources: node lists the resources of a target system. It includes memory from the DFP, BSP, and memory: definitions from the csolution.yml file.

`system-resources:`		Content
`memory:`	Optional	Identifies the section for memory.

`memory:`		Content
`- name:`	Required	Name of the memory region (when PDSC contains id, it uses the id as name).
`access:`	Required	Access attribute string for the memory (see table below).
`start:`	Required	Base address of the memory.
`size:`	Required	Size of the memory.
`pname:`	Optional	Only accessible by a specific processor.
`alias:`	Optional	Name of identical memory exposed at different address.
`from-pack:`	Optional	Pack that defines this memory.

The table lists the letters and their meaning for use in the access attribute string.

`access:`	Description
r	Readable
w	Writable
x	eXecutable
p	Peripheral area. Details described in SVD file.
s	Secure attribute
n	Non-secure attribute
c	non-secure Callable attribute

Example:

system-resources:
  memory:
    - name: ITCM_Flash
      access: rx
      start: 0x00200000
      size: 0x00100000
      from-pack: Keil::STM32U5xx_DFP@3.0.0
    - name: Ext-Flash
      access: rx
      start: 0x40000000
      size: 0x200000

`system-descriptions:`

List of the description files for peripherals and software components used in this project target.

`system-descriptions:`	Value	Use	Content
`- file:`	string	Required	Specifies the file name including the path.
`type:`	string	Required	Specifies the file type (see table below).
`info:`	string	Optional	Brief description of the file.
`pname:`	string	Optional	File is used only for a specific processor; default is for all processors.

`type:`	Description
`svd`	System View Description (`*.svd`) file specified in the DFP.
`scvd`	Software Component Viewer Description (`*.scvd`) file for CMSIS-View.

`debugger:`

This node contains connection information for a debugger with inital settings coming from the board support pack (BSP) or device family pack (DFP).

`debugger:`		Content
`name:`	Required	Identifies the debug configuration.
`info:`	Optional	Brief description from target-set.
`protocol:`	Optional	Selected debug protocol (jtag or swd).
`clock:`	Optional	Selected debug clock speed in Hz.
`dbgconf:`	Optional	Debugger configuration file (pinout, trace).
`start-pname:`	Optional	Debugger connects at start to this processor.
`gdbserver:`	Optional	Information for GDB server option of debugger.
`terminal:`	Future	Terminal port of the debugger.
`trace:`	Future	Trace port of the debugger.
`*:`	Optional	Other debugger specific options specified under target-set.

!!! Note: - protocol: and clock: are required by pyOCD but optional for other debug adapters. The file ./etc/debug-adatpers.yml allows to specify default values for required options. - start-pname: is mandatory for multi-processor targets. If start-pname: is not configured using the debugger: node in the *.csolution.yml file, the pname: of the first *.cproject.yml file is used.

The information for the debugger: node may be configured using the debugger: node in the *.csolution.yml file. If not present the values from BSP are used; if not present DFP values. The values in the *.csolution.yml file overwrites values from BSP or DFP as shown in the table below.

`*.cbuild-run.yml`	`*.csolution.yml`	BSP	DFP
`debugger:`	`debugger:`	`<boards><board><debugProbe ...`	`<device><debugconfig ...`
`protocol:`	`protocol:`	`debugLink`	`default`
`clock:`	`clock:`	`debugClock`	`clock`

If no input (*.csolution.yml, BSP or DFP) provides debugger option values, the CMSIS-Toolbox uses the values under defaults: from the file .\ect\debug-adapters.yml.

Example:

debugger:
  name: CMSIS-DAP
  info: On-Board debugger of MCB4300
  protocol: jtag
  clock: 10000000
  dbgconf: /.cmsis/MySolution+lpc4300.dbgconf

`gdbserver:`

These are options for the pyOCD GDB server configuration (could be optionally used by other debuggers as well).

Note

The gdbserver: node is only generated when the file .\ect\debug-adapters.yml contains gdbserver: for the selected debug adatper.

`gdbserver:`		Content
`- port:`	Required	Port number of processor
`pname:`	Optional	Processor name of the processor (only required for multi-core systems)
`punit:`	Future	Identifies the procssor core in a SMP system.

Example:

  debugger:
    name: CMSIS-DAP
    protocol: swd
    clock: 10000000
    dbgconf: /.cmsis/MySolution+MCXN9XX.dbgconf
    gdbserver:
      - port: 3333
        pname: cm33_core1
      - port: 3334
        pname: cm33_core0

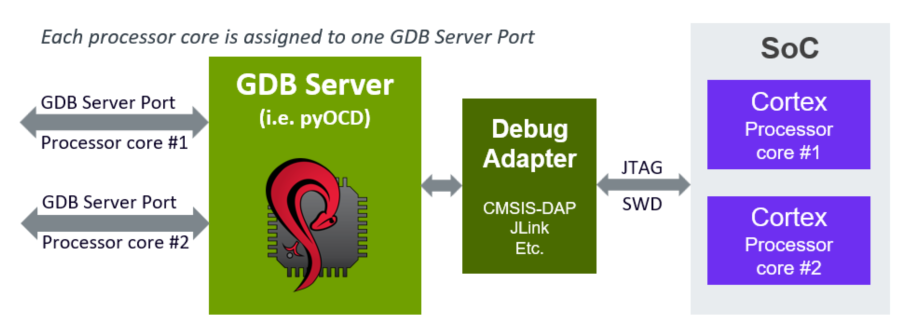

GDB Server Port Assignments

`debug-vars:`

This node contains the default value from the DFP for the variables used in debug-sequences:. This initial values are overwritten by explicit settings in the *.dbgconf file that is provided in the debugger: node.

`debug-vars:`		Content
`vars:`	Optional	Initial values for variables used in `debug-sequences:`.

Example:

debug-vars:
  vars: |
    // Default values for variables in debug sequences. Are configured with a *.dbgconf file in the user project
    __var SWO_Pin               = 0;                    // Serial Wire Output pin: 0 = PIO0_10, 1 = PIO0_8
    __var Dbg_CR                = 0x00000000;           // DBG_CR
    __var BootTime              = 10000;                // 10 milliseconds

`debug-sequences:`

This node contains the debug sequences from the DFP for the target. Debug sequences define the activities of development tools to connect to a device using the debug channel for debugging, tracing, or flash programming. The sequence name is also used to overwrite a default sequence. A sequence that contains no blocks disables the default sequence.

`debug-sequences:`		Content
`- name:`	Required	Name of the sequence.
`info:`	Optional	Descriptive text to display for example for error diagnostics.
`blocks:`	Optional	A list of command blocks in order of execution.
`pname:`	Optional	Executes sequence only for a specific processor; default is for all processors.

`blocks:`		Content
`- info:`	Optional	Descriptive text to display for example for error diagnostics.
`blocks:`	Optional	A list of command blocks in the order of execution.
`execute:`	Optional	Commands for execution.
`atomic:`	Optional	Atomic execution of commands; cannot be used with `blocks:`.
`if:`	Optional	Only executed when expression is true.
`while:`	Optional	Executed in loop until while expression is true.
`timeout:`	Optional	Timeout value (integer) in milliseconds for while loop.

Note

When atomic: is applied, sequences execute with no interrupts as fast as possible using CMSIS-DAP Atomic Commands. It has therefore restrictions and cannot be combined with blocks:.
A blocks: node can either contain execute: or blocks: but not both.

Example: DebugPortSetup

debug-sequences:
  - name: DebugPortSetup

    blocks:
    - execute:  |
        __var isSWJ      = ((__protocol &amp; 0x00010000) != 0);
        __var hasDormant = __protocol &amp; 0x00020000;
        __var protType   = __protocol &amp; 0x0000FFFF;

    - if: protType == 1
      blocks:
      - if: isSWJ
        blocks:
        - if: hasDormant
          atomic:
          execute:  |
            // Ensure current debug interface is in reset state
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);

            // Select Dormant State (from SWD)
            DAP_SWJ_Sequence(16, 0xE3BC);

            // At least 8 cycles SWDIO/TMS HIGH
            DAP_SWJ_Sequence(8, 0xFF);

            // Alert Sequence Bits  0.. 63
            DAP_SWJ_Sequence(64, 0x86852D956209F392);

            // Alert Sequence Bits 64..127
            DAP_SWJ_Sequence(64, 0x19BC0EA2E3DDAFE9);

            // 4 cycles SWDIO/TMS LOW + 8-Bit JTAG Activation Code (0x0A)
            DAP_SWJ_Sequence(12, 0x0A0);

            // Ensure JTAG interface is reset
            DAP_SWJ_Sequence(6, 0x3F);

        - if: !hasDormant
          atomic:
          execute:   |
            // Ensure current debug interface is in reset state
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);

            // Execute SWJ-DP Switch Sequence SWD to JTAG (0xE73C)
            // Change if SWJ-DP uses deprecated switch code (0xAEAE)
            DAP_SWJ_Sequence(16, 0xE73C);

            // Ensure JTAG interface is reset
            DAP_SWJ_Sequence(6, 0x3F);

      - atomic:
        execute: |
          // JTAG "Soft" Reset
          DAP_JTAG_Sequence(6, 1, 0x3F);
          DAP_JTAG_Sequence(1, 0, 0x01);

    - if: protType == 2
      blocks:
      - if: isSWJ
        blocks:
        - if: hasDormant
          atomic:
          execute:  |
            // Ensure current debug interface is in reset state
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);

            // Select Dormant State (from JTAG)
            DAP_SWJ_Sequence(31, 0x33BBBBBA);

            // At least 8 cycles SWDIO/TMS HIGH
            DAP_SWJ_Sequence(8, 0xFF);

            // Alert Sequence Bits  0.. 63
            DAP_SWJ_Sequence(64, 0x86852D956209F392);

            // Alert Sequence Bits 64..127
            DAP_SWJ_Sequence(64, 0x19BC0EA2E3DDAFE9);

            // 4 cycles SWDIO/TMS LOW + 8-Bit SWD Activation Code (0x1A)
            DAP_SWJ_Sequence(12, 0x1A0);

            // Enter SWD Line Reset State
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);  // &gt; 50 cycles SWDIO/TMS High
            DAP_SWJ_Sequence(3,  0x00);                // At least 2 idle cycles (SWDIO/TMS Low)

        - if: !hasDormant
          atomic:
          execute:  |
            // Ensure current debug interface is in reset state
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);

            // Execute SWJ-DP Switch Sequence JTAG to SWD (0xE79E)
            // Change if SWJ-DP uses deprecated switch code (0xEDB6)
            DAP_SWJ_Sequence(16, 0xE79E);

            // Enter SWD Line Reset State
            DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);  // &gt; 50 cycles SWDIO/TMS High
            DAP_SWJ_Sequence(3,  0x00);                // At least 2 idle cycles (SWDIO/TMS Low)

              // Enter SWD Line Reset State
          DAP_SWJ_Sequence(51, 0x0007FFFFFFFFFFFF);  // &gt; 50 cycles SWDIO/TMS High
          DAP_SWJ_Sequence(3,  0x00);                // At least 2 idle cycles (SWDIO/TMS Low)

    - execute:  |
      // Read DPIDR to enable SWD interface (SW-DPv1 and SW-DPv2)
      ReadDP(0x0);

`programming:`

The programming: node collects the flash algorithms of device memory (specified in DFP) and board memory (specified in BSP), and memory: specified the *.csolution.yml file.

The algorithm in the DFP and BSP must have the attribute default="1" set. If it specifies a style, only the styles "Keil" and "CMSIS" are added. Other algorithms may be add using the memory: node in the *.csolution.yml file.

`programming:`		Content
`- algorithm:`	Required	Programming algorithm file including the path.
`start:`	Required	Start address of memory covered by the programming algorithm.
`size:`	Required	Size of memory covered by the programming algorithm.
`ram-start:`	Required	Start address of RAM where the algorithm will be executed from.
`ram-size:`	Required	Maximum size of RAM available for executing the programming algorithm.
`pname:`	Optional	Specifies the processor for the execution of the algorithm.

Note

When pname: is specified the memory can only be programmed using the specified processor. Otherwise any processor in a multi-processor system can execute the programming algorithm.

`debug-topology:`

The debug-topology: node describes the properties of the system hardware for debug functionality. The information for this node is taken from the DFP. The following default values for debug-topology: are used:

debug-topology:
  dormant: false
  swj: true
  debugports:
    - dpid: 0
      jtag:
        tapindex: 0
      swd:
        targetsel: 0
      accessports:
        - apid: 0
          index: 0

`debug-topology:`		Content
`debugports:`	Optional	Describes the CoreSight debug ports of the device and its capabilities.
`processors:`	Optional	Map of `pname` identifiers to access port IDs (mandatory for multi-processor devices).
`swj:`	Optional	Device allows switching between Serial Wire Debug (SWD) and JTAG protocols (`true` or `false`).
`dormant:`	Optional	Device requires the dormant state to switch debug protocols (`true` or `false`).
`sdf:`	Optional	System Description File (`*.sdf`) specified in the DFP.

`debugports:`		Content
`- dpid:`	Required	Unique ID of this debug port.
`jtag:`	Optional	Describes JTAG Test Access Port (TAP) properties of this debug port.
`tapindex:`	Optional	TAP index in the JTAG scan chain of this device from TDI to TDO (default `0`).
`swd:`	Optional	Describes CoreSight Serial Wire Debug Port (SW-DP) properties of this debug port.
`targetsel:`	Optional	SWD multi-drop target selection.
`accessports:`	Optional	List of CoreSight access ports (APv1/APv2) (mandatory for multi-processor devices).

`accessports:`		Content
`- apid:`	Required	Unique ID of this access port. If only `apid` is provided, access port (APv1) with index `0` will be implicitly used.
`index:`	Optional	Index to select this access port (APv1) for a target access.
`address:`	Optional	Address to select this access port (APv2) in its parent's address space for a target access.
`HPROT:`	Optional	Value for HPROT (AHB Protection Control) bits.
`SPROT:`	Optional	Value for SPROT (Secure Protection Control) bit.
`datapatch:`	Optional	List of patch values a debugger shall apply when reading from the device.
`accessports:`	Optional	Nested CoreSight access ports (APv2).

Note

index: and address: cannot be specified at the same time.

`processors:`		Content
`- pname:`	Required	Processor identifier (mandatory for multi-processor devices).
`punits:`	Optional	Specifies processor units in a symmetric multi-processor core (MPCore) (mandatory when more than one CPU debug block is accessible).
`apid:`	Optional	Access port ID to use for this processor.
`reset-sequence:`	Optional	Name of debug sequence for reset operation (default: `ResetSystem` sequence).

`datapatch:`		Content
`- address:`	Required	Address for which to apply the patch.
`value:`	Required	Value to overwrite from device (for example in a ROM table).
`mask:`	Optional	The bits to patch. Default: complete value is replaced.
`type:`	Optional	Type of data access to patch (see table below). Default is `Mem`.
`info:`	Optional	Descriptive text for diagnostics messages.

The table lists the allowed values for data patch access types.

type	Data patch access type
AP	CoreSight Access Port register access.
Mem	Memory access (default when type is not specified)

`punits:`		Content
`- punit:`	Required	Specifies a specific processor unit of a symmetric MPCore.
`address:`	Required	Specifies the base address of the CPU debug block.

Note

The nodes in italic are specified for future expansion, but currently not implemented.

Usage

The *.cbuild-run.yml file provides all information about the application project for run and debug. It can be used with tools such as pyOCD as shown below.

Start gdbserver for debug connection:

>pyocd gdbserver --cbuild-run out\MyProject+TargetHW.cbuild-run.yml

Program flash with application images:

>pyocd load --cbuild-run out\MyProject+TargetHW.cbuild-run.yml

Build Information Files

Directory Structure

Lock Pack Versions

File Format

*.cbuild-idx.yml

*.cbuild.yml

*.cbuild-pack.yml

*.cbuild-set.yml

Nodes for Project Management

configurations:

cprojects:

cbuilds:

select-compiler:

packs:

generators:

generator:

Nodes for File Management

linker:

groups:

files: of a group

apis:

components:

files: of a component

constructed-files:

Nodes for License Information

licenses:

Generator Information Files

File Structure of *.cbuild-gen-idx.yml

Generator Import File

File Structure of *.cgen.yml

Run and Debug Management

File Structure of *.cbuild-run.yml

output:

system-resources:

system-descriptions:

debugger:

gdbserver:

debug-vars:

debug-sequences:

programming:

debug-topology:

Usage

`*.cbuild-idx.yml`

`*.cbuild.yml`

`*.cbuild-pack.yml`

`*.cbuild-set.yml`

`configurations:`

`cprojects:`

`cbuilds:`

`select-compiler:`

`packs:`

`generators:`

`generator:`

`linker:`

`groups:`

`files:` of a group

`apis:`

`components:`

`files:` of a component

`constructed-files:`

`licenses:`

File Structure of `*.cbuild-gen-idx.yml`

File Structure of `*.cgen.yml`

File Structure of `*.cbuild-run.yml`

`output:`

`system-resources:`

`system-descriptions:`

`debugger:`

`gdbserver:`

`debug-vars:`

`debug-sequences:`

`programming:`

`debug-topology:`
